50 Meter / 10 Meter · Rifle & Pistol
Tachus 50/10 Electronic Target System
One system for 50 Meter Small bore Rifle and 10 Meter Air Rifle and Air Pistol. Change configurations in about ten minutes instead of buying two target systems.
Quotes answered within one working day.
↓ Download product brochure (PDF)
- Events
- 50 Meter Small bore Rifle · 10 Meter Air Rifle · 10 Meter Air Pistol
- Detection
- Acoustic sensors with a paper roll that advances automatically
- Connection
- Cable to Windows laptop or PC
- Warranty
- 2 years · extendable up to 8 years
Product overview
Built for the discipline
Many shooters and academies train across distances: 10 Meter air rifle or pistol alongside 50 Meter Small bore Rifle. Buying separate electronic targets for each is expensive and takes up lane space. Tachus 50/10 Electronic Target System solves this with one unit that converts between configurations.
Two interchangeable front doors (1.5 mm for 10 Meter, 5 mm for 50 Meter) let a lane change discipline in about ten minutes, using the same acoustic detection and scoring software throughout.
Supported events
- 50 Meter Small bore Rifle
- 10 Meter Air Rifle
- 10 Meter Air Pistol
Compliant with ISSF rules and regulations for the supported events. Tachus does not claim ISSF certification.
Best suited to
- Shooters who compete in both 10 Meter and 50 Meter events
- Academies that need lanes to serve multiple disciplines
- Ranges with limited space that cannot dedicate lanes per distance
Acoustic scoring
How detection works
- 01A paper roll advances automatically after each shot.
- 02The pellet or bullet impact produces sound waves inside the unit.
- 03Acoustic sensors detect the waves and convert them into electrical signals.
- 04The system calculates the shot position and displays the score in real time on the connected computer.
Hardware highlights
- Two interchangeable front doors: 1.5 mm (10 Meter events) and 5 mm (50 Meter events)
- Configuration changeover in about 10 minutes
- Paper roll that advances automatically
- Customisable LED illumination integrated into the target face
- Mounting stand supplied with the system
Software capabilities
- Tachus scoring software with live shot display
- Personalised training sessions
- Results shown almost instantly over the cable connection
- Windows scoring software and an Android application optimized for tablets in portrait orientation
- 3P applications for Tachus 50/10 Electronic Target System on Windows and Android, for training across kneeling, prone and standing
Installation
- Single lane installation covers both 10 Meter and 50 Meter use
- Cable connection to the computer at the firing point
- Installation and service at the range provided by Tachus
Maintenance & support
- Replace the paper roll when consumed
- Swap front doors when changing discipline (about 10 minutes)
- Warranty for two years, extendable up to eight years
- Support available by phone and WhatsApp from the Bengaluru team
Technical specifications
| Shooting distances | 50 Meter and 10 Meter (convertible) |
|---|---|
| Events | 50 Meter Small bore Rifle, 10 Meter air rifle, 10 Meter air pistol |
| Detection method | Acoustic sensors with a paper roll that advances automatically |
| Front doors | Interchangeable: 1.5 mm (10 Meter) and 5 mm (50 Meter) |
| Changeover time | About 10 minutes |
| Target illumination | Customisable integrated LED |
| Connection | Cable to Windows laptop or PC |
| Scoring applications | Windows software and Android tablet application (portrait orientation) |
| 3P rifle training | Applications for Tachus 50/10 Electronic Target System on Windows and Android |
| Mounting | Stand supplied |
| Installation and service | Provided by Tachus at the range |
| Warranty | 2 years; extendable up to 8 years |
Specifications reflect the information Tachus publishes today. For dimensions, tolerances and current OS support, request the latest specification sheet from our team.
In the field

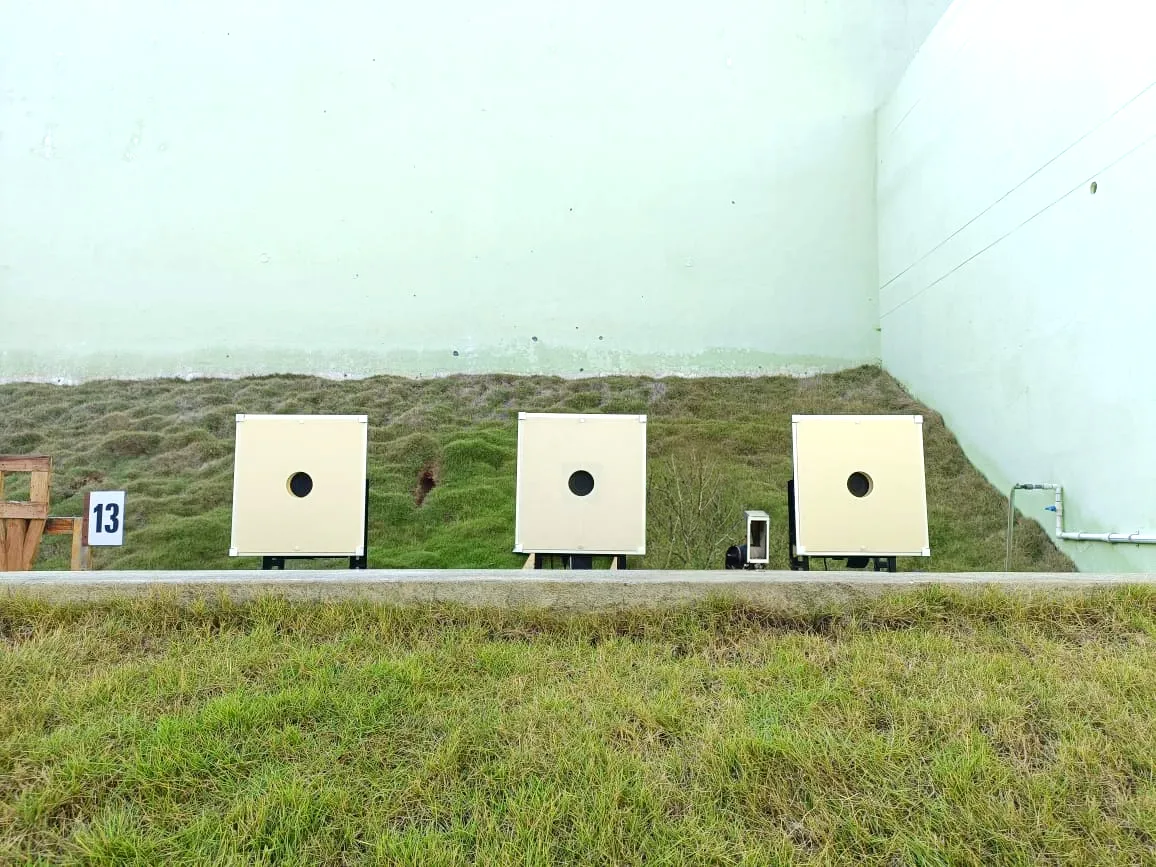

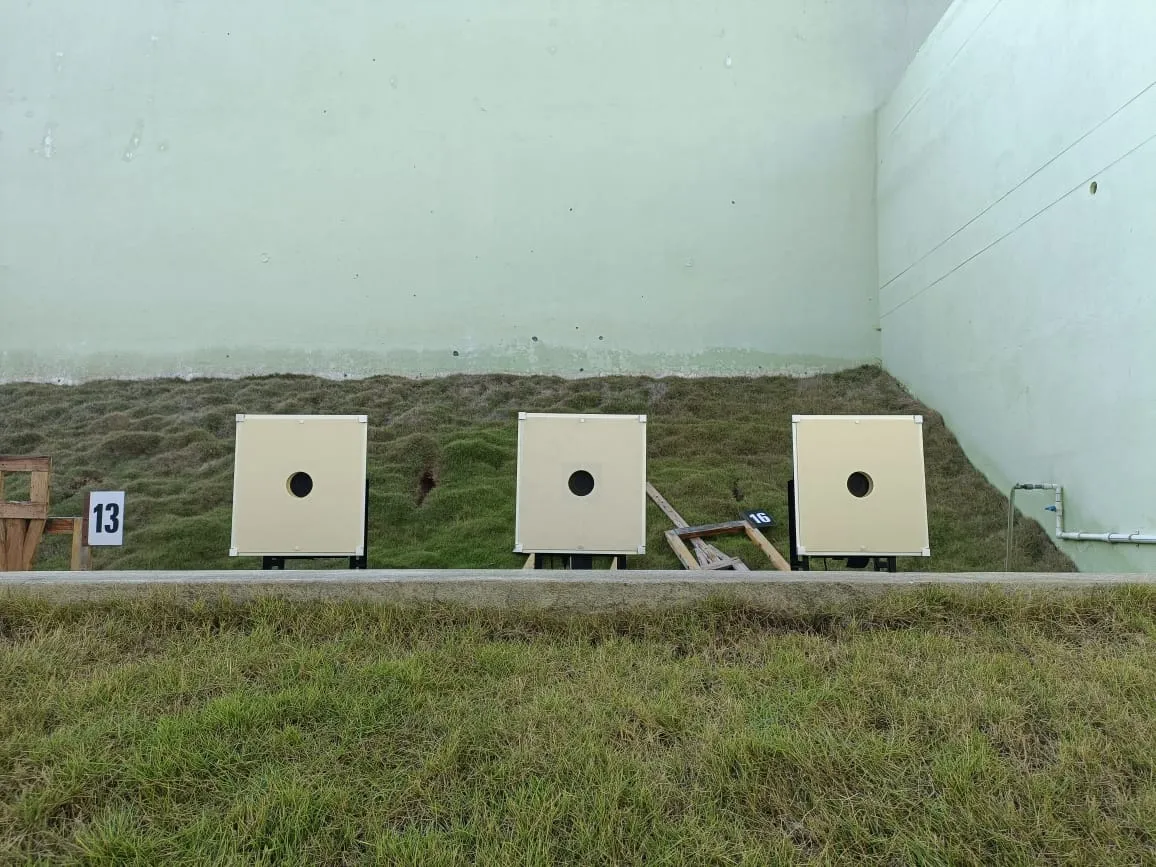

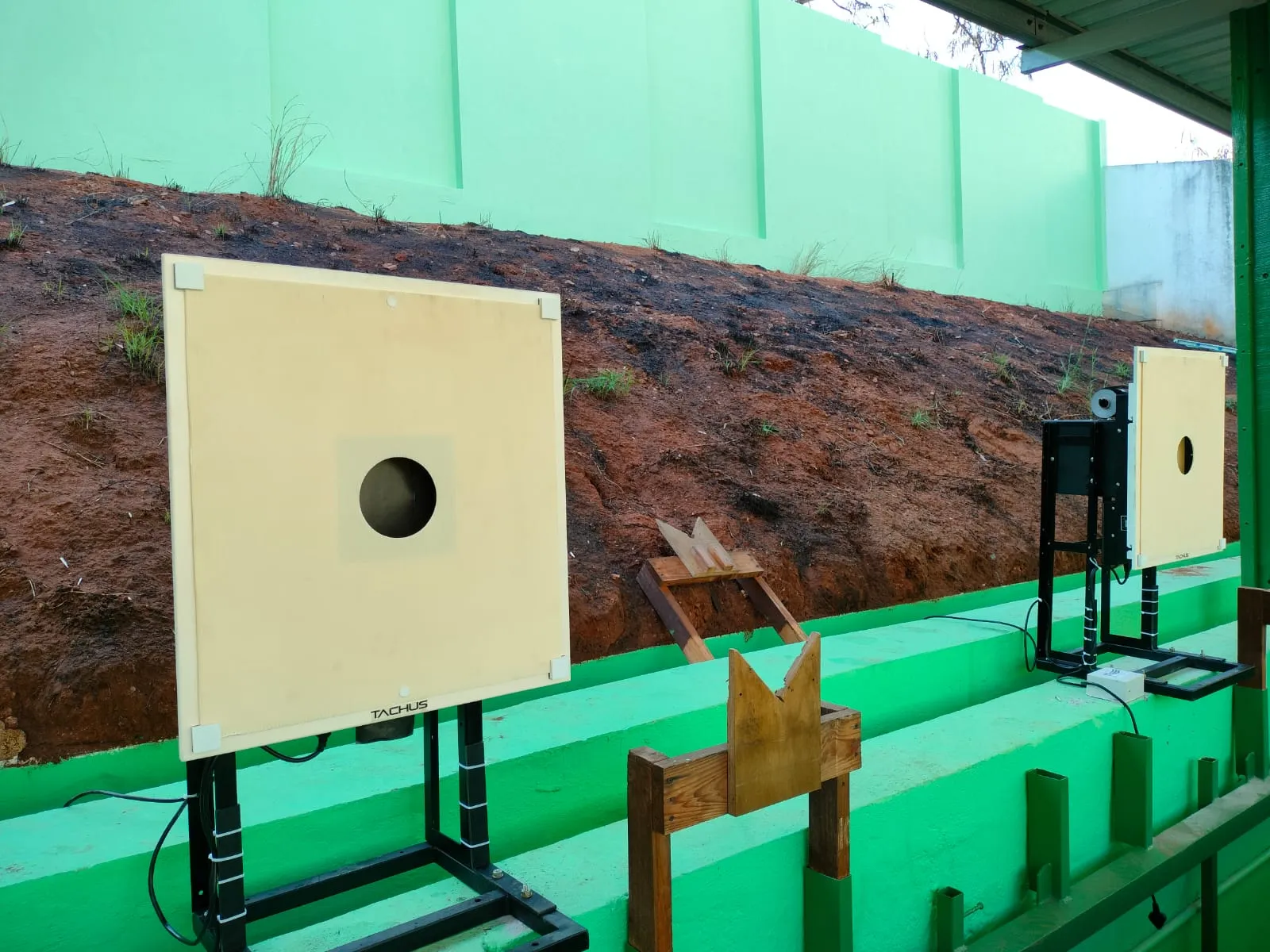

Tachus 50/10 Electronic Target System installations
Common questions
How long does it take to switch between 50 Meter and 10 Meter?
About ten minutes. You swap the front door (1.5 mm for 10 Meter, 5 mm for 50 Meter) and the lane is ready for the other discipline.
Is the scoring software the same in both configurations?
Yes. The same Tachus scoring software is used for 50 Meter Small bore Rifle and the 10 Meter air events. Every Tachus model also includes an Android application optimized for tablets in portrait orientation.
Can I train for 50 Meter Small bore Rifle 3 Positions with Tachus?
Yes. Tachus 50/10 Electronic Target System includes 3P applications for Windows and Android. The applications support training across the kneeling, prone and standing positions.
Are the mounting stand and installation at the range included?
Yes. Tachus supplies a mounting stand and provides installation and service at the range for the Tachus 50/10 Electronic Target System.
What is the warranty?
The Tachus 50/10 Electronic Target System includes a warranty for two years, which can be extended up to eight years.
More answers in the full FAQ.
Related
Also consider
10 Meter
Tachus 10 Electronic Target System
Made in India for 10 Meter Air Rifle and Air Pistol events, with live acoustic scoring for home lanes, academies, clubs and competitions.
50 Meter
Tachus 50 Electronic Target System
For 50 Meter Small bore Rifle (.22 calibre) and 50 Meter Free Pistol ISSF events, with live acoustic scoring on a connected screen.
Next step
Plan your 50 Meter / 10 Meter lanes with Tachus
Share your discipline, lane count and location. Our sales team replies with a quotation or consultation within one working day.
